Understand why power transformer core is grounded to ensure safety and protect equipment. Learn the methods, benefits, and how grounding prevents transformer faults and failures.
A power transformer is a vital piece of electrical equipment designed to transfer energy between circuits through electromagnetic induction. It mainly consists of a primary winding, a secondary winding, and a magnetic core.
The low-voltage winding is usually placed closer to the core, with fewer turns, while the high-voltage winding is wound over the low-voltage side with more turns. This arrangement helps reduce electrical stress between the windings and the core.
But why do we ground the core? Let’s understand in simple terms.

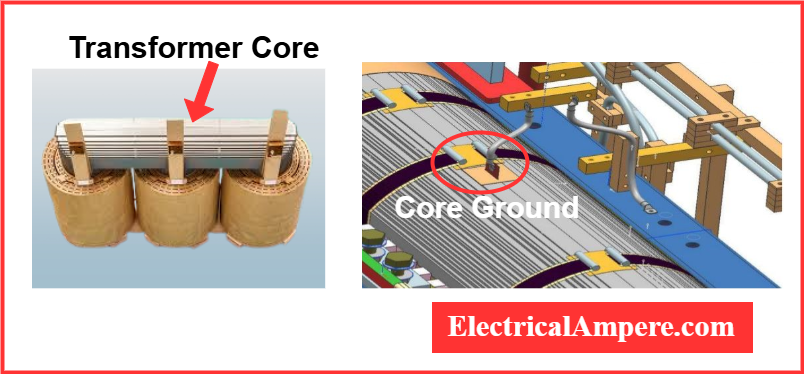

Transformer Core: A Quick Overview
The transformer core is built using thin laminated sheets of Cold Rolled Grain Oriented (CRGO) steel.
- These laminations guide the magnetic flux efficiently while also providing electrical insulation between layers.
- Because the core has very low reluctance, most of the magnetic flux stays inside it with minimal leakage.
However, due to the alternating magnetic field, small voltages can still be induced within the core. If these voltages aren’t properly managed, they can cause eddy currents, hotspots, and even electrical faults over time. That’s why grounding the transformer core becomes critical for the system’s health and safety.
How Does Core Grounding Protect the Transformer?
In the rare event of an insulation failure between the windings and the core, a high voltage can build up inside the core.
This can lead to:
- Partial discharge within the core.
- Severe damage to insulation and windings.
- Even complete transformer failure if not addressed promptly.
To prevent such disasters, the core is grounded — providing a low-resistance path for any fault current to safely flow into the ground. This allows protective devices, like breakers, to quickly detect the fault and disconnect the faulty transformer from the system, preventing further damage.
Important: The transformer core is always grounded at one single point only.
This avoids the risk of circulating currents that could occur if the core was grounded at multiple points.
Methods of Core Grounding
There are two common ways to ground a transformer core:
- Connection through the Transformer Tank
- The core is bonded directly to the grounded tank of the transformer.
- Separate Core Grounding Bushing
- A dedicated core grounding bushing is used, connecting the core to an independent earth point.
Both methods ensure that in case of a fault, the fault current finds a safe path directly to the ground.
How is the Core of a Large Power Transformer Grounded?
In large power transformers, the core is often built in sections separated by cooling ducts.
These sections need to be electrically bonded together using core jumpers.
- All the core sections are interconnected with jumpers.
- A final jumper links the entire core assembly to a single-point earth connection.
During transformer energization, the strong magnetic field can cause high voltages across the core due to capacitive coupling with the windings. Any developed voltage safely discharges to the earth without damaging the equipment by providing proper core grounding.
Additionally, in the event of a winding-to-core insulation failure, the grounding system allows protective devices to trip the transformer immediately, avoiding major failures.
Conclusion
Grounding the core of a transformer is absolutely essential for safe operation.
It not only protects the equipment from dangerous voltages but also prevents potential failures caused by insulation breakdowns. A simple but well-planned single-point grounding system can make a huge difference in ensuring transformer reliability and longevity.
