Learn what HT and LT line mean in electrical systems, including their full forms, voltage ranges, key features, applications, and major differences. Understand how ht and lt line are used in power transmission and distribution.
LT Line (Low Tension Line)
LT full form in electrical is Low Tension. An LT line refers to a low voltage power line that is typically used to deliver electricity to residential or commercial buildings. These lines carry voltages up to 1 kV (1000 volts).
In the context of household and small commercial power supply, this typically refers to 230V or 440V, which are common voltage levels used in India’s local power distribution.
LT lines form the final leg of the electrical distribution network, delivering electricity from substations to homes, shops, and small industries. These lines are essential for powering everyday appliances and are the backbone of low-voltage supply systems.
Since LT lines are directly connected to end-user loads, they are more susceptible to faults and overloads, especially due to fluctuating demands or poor wiring. However, they play a critical role in ensuring energy reaches consumers safely and efficiently.
Key Features of LT Lines
- Voltage Range: LT lines operate at voltages up to 1000V (1 kV), typically 230V for single-phase and 400–415V for three-phase systems.
- LT Meaning in Electrical: LT stands for Low Tension, indicating that the voltage is relatively low compared to transmission lines.
- Usage: These lines are primarily used for last-mile electricity distribution from distribution transformers to homes, offices, and small industries.
- Insulation: LT lines require basic but effective insulation, as they operate at low voltages. Cables are often insulated and installed overhead or underground for safety and reliability.
- Safety & Maintenance: Due to the lower voltage, LT lines are safer and easier to maintain than HT lines. However, proper earthing and protective devices are still essential to prevent hazards.
- Installation: Commonly seen in residential and commercial areas, LT lines are installed using poles or underground ducts depending on the environment and infrastructure needs.
Examples of LT Line Applications
- Home power supply
- Office and commercial buildings
- Street lighting
- Small-scale industries
HT Line (High Tension Line)
HT full form in electrical is High Tension. HT lines are designed to transmit electrical power over long distances with minimal losses. These lines carry voltages above 1 kV, typically ranging from 11 kV to 765 kV or more.
Key Features of HT Lines
- Voltage Range: HT lines typically operate between 11 kV and 765 kV, far exceeding the voltage levels used in domestic or small industrial applications.
- HT Line Voltage: HT means High Tension, and in electrical terms, it refers to lines carrying voltages greater than 1000V, used for transmitting large amounts of power over long distances.
- Used For: HT lines are designed for long-distance bulk electricity transmission from power plants to substations and large industrial consumers.
- Insulation: Due to the high voltages involved, HT lines require strong insulation, advanced protective systems, and are often air-insulated or supported by insulators on towers.
- Construction: HT lines are built with bare or insulated conductors, mounted on tall poles or steel towers, engineered to withstand weather conditions and maintain necessary clearances.
- Safety Measures: Strict safety standards are essential for HT lines, including wide clearances, protective relays, earth wires, and lightning arresters to safeguard both equipment and public safety.
- HT Means in Electrical: In electrical terminology, HT refers to High Tension lines, critical for the efficient and reliable transmission of power across long distances.
Examples of HT Line Applications

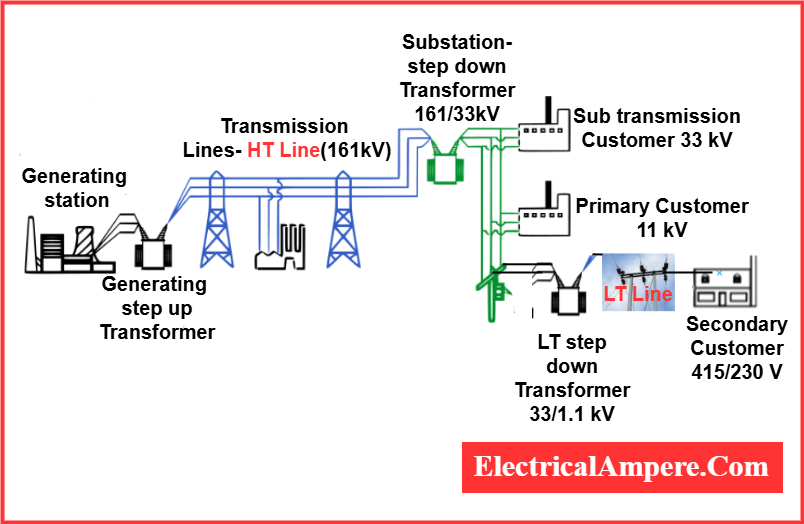

- Power Transmission from Generation Plants to Substations: HT lines are essential for transmitting electricity from power plants to substations, where it is stepped down for local distribution via LT lines.
- Industrial Power Supply: These lines serve large industrial zones and factories that require high power loads beyond the capacity of LT lines.
- Urban Infrastructure: HT lines supply electricity to large cities and urban infrastructures, ensuring consistent power delivery over long distances.
- Interconnection of Power Grids: HT lines are used to interconnect regional or national power grids, enabling efficient load sharing and energy transfer between regions.
- Railway Electrification: Many electrified railway systems depend on HT lines to deliver the necessary power across long tracks and stations.
- HT Line Voltage Classification: Standard HT line voltages range from 11 kV to 33 kV. If the voltage exceeds 33 kV, it is referred to as Extra High Tension (EHT).
- Fewer Faults: Unlike LT lines, HT lines are not directly connected to end-user loads, which means fewer faults and higher reliability in operation.
- Infrastructure Requirements: Due to the high voltage, HT lines require larger towers, longer insulator chains, and robust structural designs to maintain safety and operational efficiency.
How High Voltage AC is Generated?
High-voltage AC is generated using large alternators in power stations. These alternators produce AC power at a voltage of around 11 kV, which is then stepped up using transformers to higher voltages like 132 kV, 220 kV, or 400 kV to minimize transmission losses over long distances.
Factors Affecting Overhead Transmission Line Insulation
- Voltage Level: Higher voltages need better insulation
- Weather Conditions: Rain, dust, and pollution reduce insulation life
- Conductor Spacing: Proper spacing avoids arcing
- Altitude: Higher altitudes require increased insulation
- Type of Insulator Used: Porcelain, glass, or polymer insulators
Why Do We Need High‑Voltage Transmission Lines?
High voltage transmission is essential because:
- Minimises Energy Losses
Electrical losses in a conductor are proportional to I2R. By raising the transmission voltage, the current(I) required for the same power P drops, so resistive (I²R) losses fall dramatically—vital for hundreds of kilometres of line. - Allows Thinner, Cheaper Conductors
Lower current also means a smaller cross‑sectional area is sufficient to carry the load safely. Leaner conductors (and lighter towers) cut construction, material and maintenance costs across a national grid. - Economical for Large‑Scale Grids
With reduced losses and slimmer conductors, high‑voltage lines provide the most cost‑effective backbone for interconnecting regional grids, sharing generation resources, and balancing loads over vast areas. - Reliable Delivery to Remote Areas
Stepping the voltage up for long hauls, then down near the point of use, keeps voltage drops within acceptable limits and lets utilities feed power to distant rural or industrial zones without building extra generation locally.
In short, transmitting at high tension—whether it’s 110 kV, 220 kV or beyond—lets utilities move huge amounts of power efficiently, economically, and reliably over long distances.
What is the Difference Between HT and LT Line?
Understanding the distinction between LT and HT lines is essential for comprehending how electricity travels from power plants to our homes, industries, and businesses. The primary difference lies in the voltage levels, insulation, usage, and safety requirements.
Key Differences between LT and HT Line
| Sr. No. | Parameter | LT Line (Low Tension Line) | HT Line (High Tension Line) |
|---|---|---|---|
| 1 | Voltage Range | Up to 1000V (e.g., 230V single-phase, 415V three-phase) | 11kV to 765kV or higher |
| 2 | Full Form in Electrical | Low Tension | High Tension |
| 3 | Used For | Final-stage distribution to homes, shops, and small industries | Long-distance electricity transmission from power plants to substations |
| 4 | Meaning in Electrical | Refers to low voltage lines used for local delivery | Refers to high voltage lines for transmitting electricity efficiently over long distances |
| 5 | Connected To | End users (homes, buildings, small businesses) | Transformers, substations, heavy industries, grid connections |
| 6 | Insulation | Basic insulation; safer and easier to handle | Requires heavy-duty insulation and longer insulator chains |
| 7 | Maintenance | Easier and safer; simpler tools and PPE required | Requires trained personnel, safety gear, and permits due to high voltage risk |
| 8 | Transmission Type | Local delivery | Bulk power transmission |
| 9 | Conductor Type | Uses smaller ACSR conductors like squirrel/Weasel (phase), Squirrel (neutral) | Uses thicker conductors like rabbit (up to 11kV), dog (up to 33kV), and panther (above 66kV) |
| 10 | Wiring System | Typically four wires (R, Y, B, Neutral); star connection | Three-phase only (no neutral); delta connection |
| 11 | Line Faults | More prone to faults as it’s directly connected to diverse loads | Less prone to faults due to minimal load-level interactions |
| 12 | Insulators Used | Pin and shackle type insulators | Disc and pin type insulators, with longer chains for higher voltages |
| 13 | Installation Type | Mounted on poles or underground | Suspended on towers or long-span poles |
| 14 | Safety Risk | Lower; reduced danger due to low voltages | High; requires strict clearances and protection |
| 15 | Purpose | Delivers usable electricity to consumers | Transfers bulk power efficiently with reduced I²R losses |
| 16 | Efficiency | Less efficient over long distances due to higher current and losses | Highly efficient over long distances due to low current |
| 17 | Power Losses | High losses in long transmission due to greater current | Lower losses because high voltage = lower current |
| 18 | Conductor Size | Requires thicker conductors due to high current flow | Smaller conductors can be used due to lower current |
| 19 | Cost | Costlier for long-distance lines due to more conductor material and voltage drop | More economical for grid-level power transport |
| 20 | Examples | Home power supply, small shops, residential buildings | Transmission between power plants and substations, large industries, railways, grid interconnect |
Conclusion
Understanding the difference between LT and HT line is essential for professionals in electrical engineering and for everyday users who want to know how power is delivered to their homes and workplaces. While LT lines are suitable for local distribution and safety, HT lines are indispensable for large-scale power transmission with minimal loss. Both play crucial roles in a stable and efficient power infrastructure.
