A post insulator is a type of high voltage (HV) insulator designed in accordance with IEC, ANSI, and other relevant international standards.
Post insulators are high voltage (HV) insulators made from either composite materials such as silicone rubber or a single piece of porcelain. They are widely used across various electrical applications due to their excellent mechanical strength and reliability. In transmission and distribution systems, these insulators are commonly referred to as line post insulators.
Tie top line post insulators are typically used in power lines up to 69 kV, replacing conventional pin insulators. These are secured to the conductor using a top tie. The other types use a clamp unit to attach the conductor. Line post insulators can be installed both vertically and horizontally on utility poles.

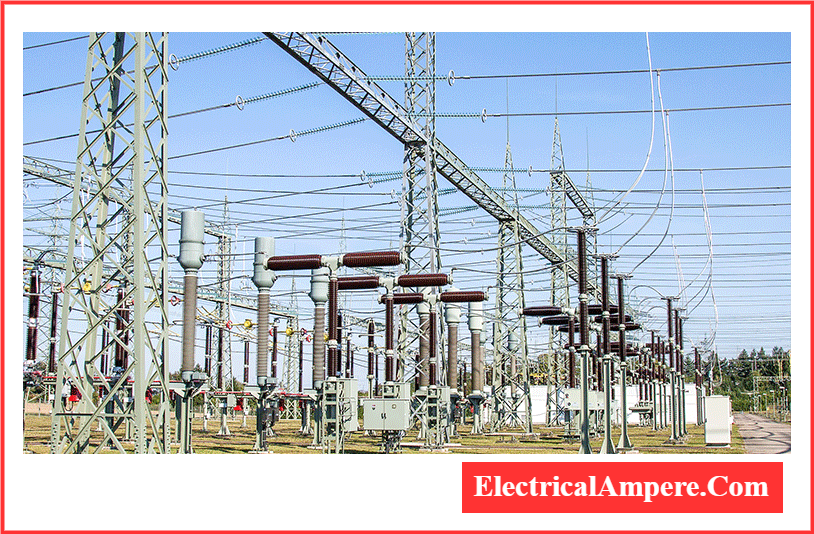

For substations and similar environments, these insulators are known as station post insulators. They are usually installed in a vertical orientation to support and insulate equipment like switchgear and transformers. In high-voltage applications, multiple post insulators may be stacked to achieve the required insulation level.

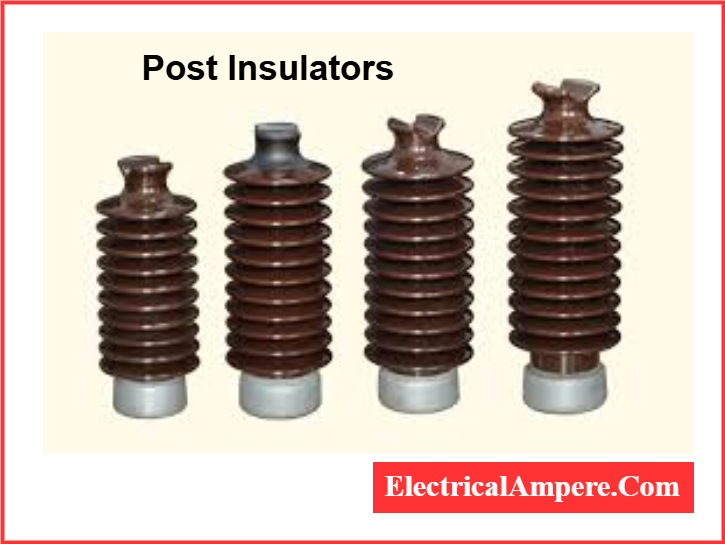

What is Post Insulator?
Post insulators are designed specifically for high voltage (HV) applications and are manufactured in accordance with standards such as ANSI, IEC, and others. Certified compliance with these standards is essential. These insulators can be used in power systems operating at voltages up to 1100 kV.
In transmission line applications, they are referred to as line post insulators. These insulators typically feature narrow and sharp flanges—a design intended to increase the creepage distance. However, this configuration can also lead to challenges related to electrode pollution.
Most post insulators are made from ceramic materials, though composite post insulators are also widely used and considered standard in many modern installations. Composite types undergo rigorous quality testing to ensure performance. The materials selected for manufacturing post insulators must meet both mechanical strength and electrical performance requirements to ensure reliability in service.
Various Models of Post-Type Insulators
Post-type insulators come in several models, distinguished primarily by their top and bottom end fittings. In transmission and distribution systems, there are five main types of line post insulators based on their design and mounting configurations:
- Tie Top Line Post Insulator
These insulators have a core rod with an F-neck design, making them functionally similar to pin-type insulators. They can be used as direct replacements in many applications. - Vertical Clamp Top Line Post Insulator
Designed with a stud base and a clamp-style top, this insulator is mounted vertically at the top of utility poles. - Horizontal Clamp Top Line Post Insulator (Stud Mount)
This type features a clamp top and is installed horizontally on the side of a utility pole. It is commonly referred to as a horizontal clamp top (stud mount) line post. - Horizontal Line Post Insulator (Gain Base)
This model has a clamp top and a gain base and is typically mounted on the side of a pole, providing horizontal support for conductors. - Brace Post Insulator

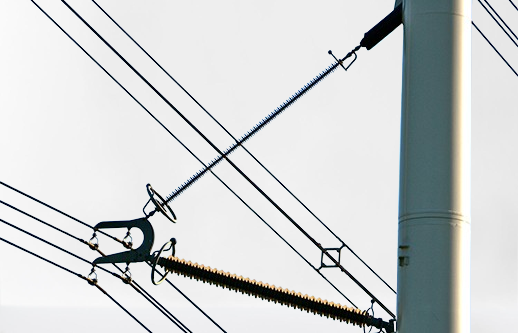

A hybrid design that combines features of both suspension insulators and horizontal line posts. These are usually made from silicone rubber and offer enhanced flexibility and mechanical strength.
Key Features of Post Insulators
They are widely used in transmission lines due to their robust performance and reliability. The following features make them a preferred choice in high-voltage applications:
- High Mechanical Strength
Post insulators are subjected daily to various mechanical stresses, including compression, torsion, and bending forces. To withstand these conditions without failure, they must possess high mechanical durability. Inferior strength can lead to structural collapse and costly replacements. - Solid and Puncture-Resistant Design
Installed in outdoor environments, these insulators are constantly exposed to rain, pollution, and other atmospheric conditions. Their design must be solid and resistant to punctures to ensure long-term reliability and safety. - High-Quality Insulating Materials
Post insulators are commonly made from aluminum oxide ceramics or porcelain. Aluminum oxide offers excellent insulating properties and high mechanical strength. Porcelain, too, is widely recognized for its strong dielectric and mechanical characteristics. - Optimized Creepage Distance
To prevent surface tracking and flashover, post insulators must have an adequate creepage distance—the surface distance between conductive parts. A well-designed creepage path enhances insulation reliability under high pollution and wet conditions. - Compliance with International Standards
Like all transmission line components, post insulators must meet recognized global standards such as IEC, IEEE, and NEMA. Compliance with these standards ensures the insulator’s quality, safety, and performance in demanding electrical environments.
Strength Ratings of Post Insulators
Post insulators used in transmission lines are classified based on their mechanical strength ratings. These ratings are essential for ensuring reliable performance in bus systems and high-voltage applications. Each category of post insulator complies with relevant ANSI standards for electrical and mechanical properties within its voltage class.
1. Standard Strength Post Insulators
These are the most commonly used insulators, widely available in the market. They are designed to meet all ANSI requirements for both mechanical and electrical performance for standard voltage levels.
- Typical Applications: General transmission line use.
- Examples: 22 kV and 33 kV post insulators.
2. High Strength Post Insulators
High strength post insulators are built to provide additional mechanical durability. While their electrical characteristics are similar to standard strength models, they are engineered for more demanding conditions.
- Typical Applications: Switchyard connections, transmission lines with higher mechanical stress, and heavy-duty bus systems.
- Examples: 69 kV post insulators, suitable for systems with potential for high short-circuit forces.
3. Extra-High Strength Post Insulators
These insulators are specifically designed for projects that involve very high mechanical loads. They are suitable for long-span lines or installations exposed to extreme weather or mechanical stress.
- Typical Applications: Critical transmission infrastructure requiring maximum mechanical support.
- Examples: 115 kV and 150 kV post insulators, built to meet or exceed ANSI standards.
Tests Conducted on Post Insulators
Post insulators undergo a series of tests to ensure their quality, reliability, and compliance with industry standards. These tests are categorized as follows:
1. Routine Tests
These are carried out on every insulator unit during manufacturing to ensure consistent quality:
- Visual Inspection: To detect surface defects, cracks, or irregularities.
- Mechanical Routine Test: To verify mechanical strength under normal conditions.
- Electrical Routine Test: To check insulation performance under rated voltage.
- Compliance Check: Ensures the insulator meets all relevant specifications and standards.
2. Sample Tests
Performed on randomly selected units from production batches, these tests assess the overall batch quality:
- Dimensional Verification: Confirms adherence to design specifications.
- Mechanical Failing Load Test: Measures the maximum mechanical load the insulator can withstand before failure.
- Temperature Cycle Test: Evaluates performance under alternating high and low temperatures.
3. Type and Performance Tests
These specialized tests assess the insulator’s behavior under extreme or simulated service conditions:
- Thermal and Mechanical Performance Tests: Simulate real-world stresses over time.
- Wet Power Frequency Voltage Withstand Test: Assesses insulation under moisture and wet conditions.
- Dry Lightning Impulse Voltage Test: Verifies withstand capability against high-voltage surges like lightning strikes.
All testing procedures must comply with applicable IEC, ANSI, or other relevant standards based on the specific project or application requirements.
Applications of Post Insulators
They are widely used in electrical power systems due to their excellent mechanical strength, high-voltage performance, and reliability. Their applications include both transmission and distribution systems, as well as substations.
1. Transmission Lines
- Used as line post insulators to support conductors on transmission towers.
- Suitable for voltages up to 150 kV or more.
- Provide insulation and mechanical support for conductors in harsh outdoor environments.
2. Distribution Lines
- Installed on utility poles for medium-voltage distribution systems.
- Replaces pin-type insulators in many modern networks due to superior strength and durability.
- Commonly used in urban and rural power delivery systems.
3. Substations (Station Post Insulators)
- Known as station post insulators when used in substations.
- Support and insulate components like busbars, disconnect switches, circuit breakers, and transformers.
- Often used in vertical positions to isolate and protect equipment.
4. Switchgear and Control Equipment
- Installed inside high-voltage switchgear to isolate live components.
- Ensures safe operation and maintenance of control equipment by preventing arcing and short circuits.
5. High Voltage Testing Equipment
- Used in laboratories and testing stations for high-voltage insulation and safety.
- Provides reliable insulation during electrical testing procedures.
6. Railway Electrification Systems
- Supports overhead catenary systems in electrified railway networks.
- Ensures secure and continuous power supply to electric locomotives.
7. Industrial Applications
- Used in heavy electrical equipment, such as industrial motors, generators, and high-power converters, where high insulation strength is required.
Benefits of Post Insulators:
- High Strength: They are designed to endure significant mechanical and electrical stresses, ensuring reliable performance in demanding environments.
- Pollution Resistance: Their construction and materials provide excellent resistance to environmental factors such as pollution, reducing the risk of degradation.
- Durability: Known for their long lifespan, post insulators require minimal maintenance and offer sustained performance over time.
Factors Affecting the Performance of Post Insulators
The performance of post insulators is influenced by several factors that impact their efficiency, durability, and reliability in high-voltage electrical systems.
Environmental Conditions play a significant role, with pollution, humidity, rain, and temperature fluctuations all affecting the insulator’s surface resistance and mechanical properties. Pollutants like dust and dirt can create leakage paths, while wet conditions can lead to flashovers. Extreme temperature changes may cause material degradation or brittleness.
The creepage distance, or the length of the insulating surface, is also critical. A shorter creepage distance increases the risk of flashovers, especially in polluted areas. Mechanical stress from forces like wind load, vibration, and handling can cause physical damage or weaken the insulator over time. Proper installation and handling are essential to prevent these issues.
The material quality of the insulator, whether ceramic or composite (like silicone rubber), affects its durability and performance. Ceramic insulators offer high strength but can become brittle under stress, while composites provide better resistance to environmental factors but require thorough testing for electrical properties.
Voltage level is another factor: higher voltages demand insulators with superior insulation properties to prevent breakdowns. Contamination from salts, dust, or other pollutants can create conductive paths along the insulator, increasing the risk of electrical failures.
Lastly, aging and wear from prolonged exposure to environmental factors and manufacturing quality are crucial. Over time, insulators degrade, reducing their effectiveness. Regular maintenance and rigorous testing are necessary to ensure they meet international standards.
In conclusion, addressing these factors during installation and maintenance is essential for ensuring the optimal performance and longevity of post insulators.
Installation of Post Insulators
Proper installation of post insulators is critical for ensuring their effectiveness and longevity in high-voltage electrical systems. The installation process must follow industry standards and manufacturer guidelines
- Site Preparation: Before installation, the site must be inspected for environmental conditions, ensuring that it is suitable for the type of post insulator being used. The area should be free from excessive pollution, moisture, and physical obstructions.
- Positioning: They must be carefully positioned on the transmission line to ensure correct alignment. The installation height and orientation depend on the type of insulator and the voltage level. The insulator must be securely fixed to both the top and bottom fittings to avoid any mechanical strain or damage during operation.
- Electrical Connections: For electrical connections, post insulators use a clamp system or connector at the top. Care should be taken to avoid creating any electrical faults by ensuring proper conductor placement and tightening of connections. It is crucial to use high-quality, corrosion-resistant materials for the connectors to prevent deterioration.
- Inspection and Testing: After installation, it is essential to conduct thorough inspections and testing to verify that the post insulator meets all required electrical and mechanical standards. This includes checking for proper creepage distance, correct installation, and proper conductor support.
Maintenance of Post Insulators
Regular maintenance ensures that post insulators perform optimally and last longer.
- Visual Inspections: Routine visual checks should be conducted to look for any visible damage, cracks, or signs of wear. Any visible defects should be addressed promptly to prevent more serious issues.
- Cleaning: Post insulators exposed to high levels of pollution or environmental contaminants may require periodic cleaning. This helps remove dirt, dust, and other pollutants that could create conductive paths on the insulator’s surface.
- Electrical Testing: Insulation resistance testing should be done periodically to assess the insulator’s ability to withstand electrical stress. This can help identify any degradation in performance due to aging or environmental factors.
- Mechanical Inspections: Regular checks should be performed on the mechanical integrity of the insulator, including the clamp fittings and other components. Vibration, wind load, or other mechanical stresses could cause loosening or breakage if not properly monitored.
- Replacement: If an insulator has become too damaged or worn out, it should be replaced immediately to avoid compromising the system’s performance and safety.
In conclusion, careful installation and regular maintenance are vital for the proper functioning of post insulators. Ensuring they are correctly installed and maintained minimizes the risk of electrical faults, increases their lifespan, and ensures reliable operation in high-voltage applications.
Difference Between Post Insulators and Pin Insulators
Post insulators and pin insulators may appear similar at first glance, but they are designed for different purposes and voltage levels. Understanding the differences between these two types is crucial for selecting the right insulator for your application.
The primary distinction lies in their application range—pin insulators are generally used for lower voltage levels, while post insulators are suitable for higher voltage and more demanding environments.
Key Differences Between Post Insulators and Pin Insulators
| Feature | Pin Insulator | Post Insulator |
|---|---|---|
| Voltage Range | Suitable for voltages up to 33 kV | Used for low to high voltages, up to 150 kV |
| Construction | Typically has a single piece (single stag) | Can have single or multiple stags |
| Modularity | Cannot be stacked or combined for higher voltage use | Multiple units can be stacked for higher voltage applications |
| Conductor Mounting | Conductor is fixed using a binding wire | Conductor is mounted using a connector clamp |
| Metallic Fittings | Metallic part is located only at the bottom | Fitted with metallic parts at both top and bottom |
| Application Area | Used primarily on distribution lines | Used in both transmission and distribution systems |
While both insulator types are used in power transmission and distribution systems, post insulators offer greater flexibility and strength for high-voltage applications, making them ideal for modern grid requirements. Pin insulators, on the other hand, remain a cost-effective solution for lower voltage distribution lines.
Conclusion
Post insulators are critical components in high-voltage power systems, ensuring safe and reliable insulation between live conductors and grounded structures. Whether made from ceramic or composite materials, their selection should be based on factors such as voltage level, environmental conditions, and compliance with recognized international standards.
