Explore the key differences between a cable ladder and cable tray. Learn about their design, applications, advantages, and ideal use cases for efficient cable management.
In electrical and industrial installations, organizing and supporting cables is a critical task. Two of the most common methods used are cable ladders and cable trays. While they may seem similar at first glance, both systems serve different purposes and have distinct characteristics. Understanding the difference between a cable ladder and cable tray is essential for selecting the right solution for your project.

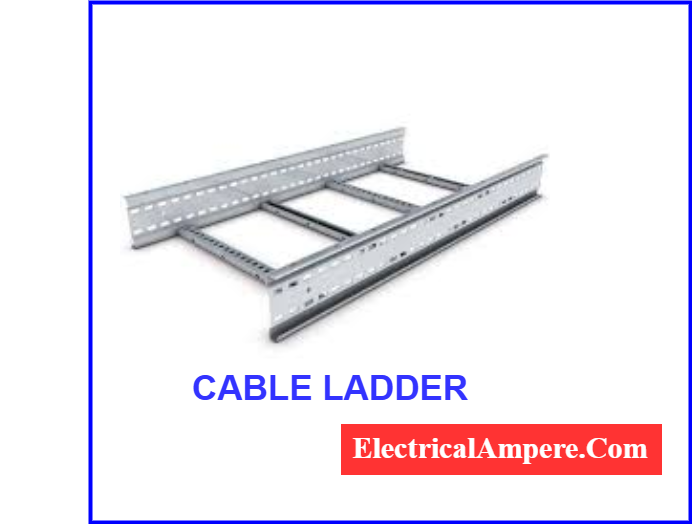

What is a Cable Ladder?
A cable ladder, also known as a ladder cable tray, is a support system that consists of two longitudinal side rails connected by individual rungs. These rungs are spaced at regular intervals and provide a structure that resembles a ladder—hence the name. Alternative names include: cable runway and ladder tray.
Key Features of Cable Ladders:
- Design: Open structure with side rails and rungs.
- Material: Usually made from galvanized steel, aluminum, or stainless steel.
- Ventilation: Excellent airflow around cables due to the open design.
- Application: Best for heavy-duty power cables and long-span installations.
- Features a simple design with side rails connected by rungs, often perforated to easily secure cable ties or cleats.
- Suitable for carrying electrical, instrumentation, and telecommunication cables.
- Designed to support heavy-duty cables, bundled cables, and even small pipes across long spans.
- Allows cable entry and exit at any point along the run, enhancing flexibility during installation.
- The open design ensures maximum airflow, helping to prevent cable overheating.
- Minimizes buildup of moisture, dust, or water, contributing to better cable health.
- Cables remain exposed and accessible, simplifying inspections, maintenance, and future upgrades.
- Optional protective covers shield cables from UV radiation, snow/ice, and vandalism.
- Compatible with fittings like elbows, tees, crosses, and risers to easily change direction or elevation, even in limited spaces.
- Typically supplied in 3-meter or 6-meter lengths, depending on the project requirement.
Advantages of Ladder Cable Tray:
- Allows heat to dissipate efficiently.
- Easy access for cable installation and maintenance.
- Suitable for high-volume and high-voltage cables.
- Cables can enter or exit at any rung.
Common Uses of Cable Ladder Trays:
- Industrial plants
- Utility buildings
- Power stations
- Infrastructure projects
What is a Cable Tray?
A cable tray is a broader term that encompasses various types of cable support systems, including ladder-type trays. It can be perforated, solid-bottom, wire mesh, or channel type. The main purpose is to support and protect electrical cables in commercial, residential, and industrial environments.
Key Features of Cable Tray:
- Cable Tray, Other common names: trough, ventilated cable tray
- Constructed from a single sheet of metal, often featuring slot patterns that simplify the mounting of equipment, cable ties, and tubing clamps.
- Suitable for light-duty applications involving electrical, instrumentation cables, and tubing.
- The solid bottom design reduces electromagnetic interference (EMI), while perforations support ventilation and water drainage.
- Offers extra support, preventing cables from sagging and ensuring reliable circuit performance.
- Known for being the most visually appealing option; ideal for buildings without false ceilings where organized, visible cable runs are preferred.
- Optional covers provide protection against UV rays, snow, ice, and vandalism.
- Typically available in 3-meter lengths.

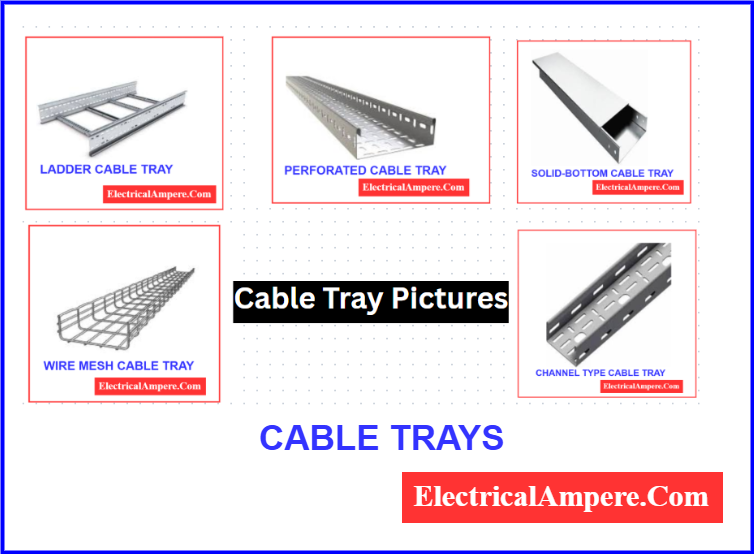

Popular Types of Cable Trays:
- Ladder Type Cable Tray – A subset of cable trays that is often confused with the term “cable ladder.”
- Perforated Cable Tray – With ventilated bottoms for light to medium cable loads.
- Solid Bottom Tray – Offers complete protection for sensitive cables.
- Wire Mesh Tray – Lightweight and easy to install, ideal for data centers.
- Channel Tray – Compact option for short cable runs.
Cable Ladder vs. Cable Tray – A Comparative Table
| Feature | Cable Ladder (Ladder Tray) | Cable Tray (Other Types) |
|---|---|---|
| Design | Open rungs between side rails | Solid or perforated base with side rails |
| Ventilation | Excellent | Moderate to low (varies by type) |
| Cable Access | Easy from top and bottom | Depends on type (perforated allows some) |
| Best Use | Heavy cables over long distances | Light to moderate loads |
| Material Strength | Generally higher | Varies |
| Heat Dissipation | Superior | Limited in solid-bottom trays |
| Cost | Slightly higher | Usually more economical |
When to Choose a Cable Ladder Tray
Use this when:
- You’re dealing with high-voltage or heavy-duty cables.
- The installation requires long spans between supports.
- Proper heat dissipation is critical.
- Easy access for maintenance is important.
When to Use Other Types of Cable Trays
Use a perforated or solid-bottom tray when:
- The project involves light or control cables.
- EMI/RFI protection is needed (solid bottom).
- Budget constraints favor more economical options.
- The installation area has space limitations.
Conclusion
Choosing between a cable ladder and a cable tray depends largely on the application, cable type, installation environment, and budget. While ladder-type cable trays (or cable tray ladders) are perfect for heavy-duty industrial applications, other cable tray types offer more flexibility for different scenarios.
By understanding the structural and functional differences, electrical engineers and contractors can make informed decisions that ensure safety, performance, and cost-efficiency in their cabling systems.
