Torque is the measure of rotational force applied to an object. It plays a crucial role in the design, performance evaluation, and operation of rotating systems. Torque motors, also known as direct-drive motors, operate based on electromagnetic principles. They offer high torque output, excellent power density, and exceptional dynamic response. Their compact, rigid construction, along with a simple design, makes them cost-effective and low-maintenance.
The required torque output is determined by the specific application, and each torque motor is selected based on its unique performance characteristics. There are various types of torque motors, including low-torque, high-torque, constant torque, variable torque, torque-density optimized, and direct torque control motors.
Key technical parameters that define a torque motor’s performance include torque, speed, efficiency, and power.
What is a Torque Motor?
A torque motor is a specialized type of motor that produces high torque at low or zero speeds. It is a direct-drive motor that eliminates the need for mechanical transmission like gears or belts. When people ask, “What is a torque motor?” or “What is the torque of a motor?”, the answer lies in its ability to deliver continuous torque, making it ideal for applications that require precise force control. In Portuguese, it’s referred to as “torque de um motor,” emphasizing its global relevance.
Torque motors operate based on the interaction between a magnetic field and an electric current. They consist of two primary components: the stator (the stationary part) and the rotor (the rotating part). The stator generates a magnetic field, and as electric current flows through the rotor, it produces rotation within this field. This rotational motion is converted into torque, which can then drive mechanical systems to perform work or generate movement.
These motors are often referred to as “frameless” motors, meaning they are supplied without housings, bearings, or feedback devices—allowing for greater design flexibility and easy integration into custom systems.
Differences Between Torque Motors and Induction Motors
Torque motors differ from traditional induction motors primarily in their function and control. While induction motors focus on rotational speed and are best suited for constant-speed operations, torque motors are designed to deliver consistent torque even at a standstill. They offer superior control and dynamic response, often used in applications where torque in motor output is more crucial than speed.
Comparison of Torque Motors and General Induction Motors
| Parameter | Torque Motors | General Induction Motors |
|---|---|---|
| Operation | Operate at low voltage and low speed under load | Operate at constant voltage and speed under load |
| Starting Torque | High starting torque | Low starting torque |
| Rated Speed | Designed for low-speed operation | Designed for high-speed operation |
| Speed Adjustment | Controlled by voltage regulation | Controlled by variable frequency drives (VFD) or special speed motors |
Torque Motor Working Principle
The working of a torque motor is based on electromagnetic induction. When electrical current flows through the motor windings, it creates a magnetic field. This field interacts with the rotor to generate torque. Torque motors can operate under stalled conditions for extended periods without overheating due to their advanced thermal design. Torque motors are built with high-resistance windings, allowing them to safely operate under stall conditions for extended periods.

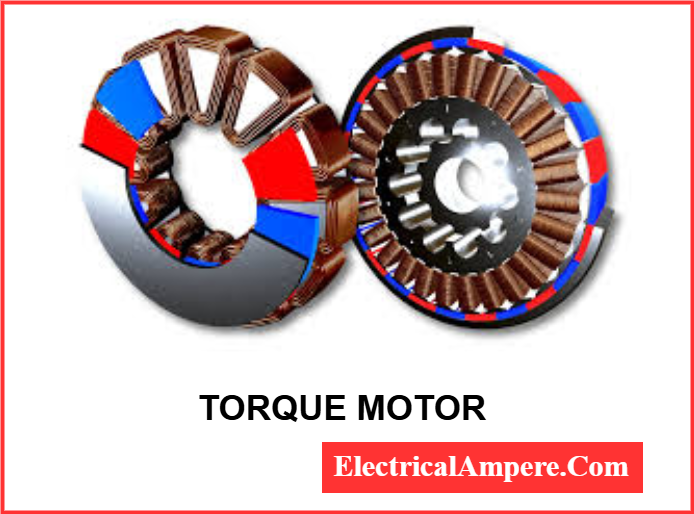

Torque Motor Diagram
A typical torque motor includes a stator, rotor, permanent magnets, and windings. The magnetic field flows between the stator and rotor to create torque. [Insert diagram with labeled parts showing magnetic field direction and torque output.]
Key Parameters of Torque Motor:
▪︎ Torque
Torque refers to the maximum rotational force the motor can produce, typically measured in Newton-meters (Nm). It indicates the motor’s ability to perform work involving rotation.
▪︎ Speed
Speed represents the motor’s rotational velocity, measured in revolutions per minute (RPM). It defines how fast the motor’s shaft can spin under specific conditions.
▪︎ Efficiency
Efficiency is the ratio of mechanical power output to electrical power input. It reflects how effectively the motor converts electrical energy into mechanical motion, usually expressed as a percentage.
▪︎ Power
Power is the rate at which the motor generates mechanical energy, measured in Watts (W). It combines both torque and speed to indicate overall motor performance.
Key Features of a Torque Motor:
▪︎ High Precision: Torque motors offer exceptional accuracy, making them ideal for applications in manufacturing and robotics where precise control is essential.
▪︎ Low Maintenance: With no need for gearboxes or speed reducers, torque motors have fewer moving parts. This results in reduced wear and lower maintenance costs over time.
▪︎ Easy Integration: Torque motors are designed for seamless integration with advanced systems. Their adaptability in terms of torque, speed, size, and thermal management allows them to meet diverse application requirements.
▪︎ Wide Torque-Speed Range: These motors can deliver high torque across a broad range of speeds. Their performance characteristics are typically represented using a torque-speed curve.
▪︎ Excellent Dynamic Performance: Thanks to high control loop bandwidth, torque motors can respond quickly and accurately to changing load demands. This makes them suitable for applications with strict dynamic performance requirements. The motor’s peak or continuous torque rating aids in selecting the right motor for a specific duty cycle.
▪︎ High Torque Density at Low Speed: Unlike traditional motors that require high speeds to generate torque—often at the cost of precision and durability—torque motors use magnetic energy to produce high torque at low speeds, enhancing performance and longevity.
▪︎ Superior Efficiency: Under heavy loads, torque motors generally outperform conventional motors in terms of energy efficiency due to their optimized design and operating principles.
Why Choose Torque Motors?
Torque motors offer numerous advantages that make them the preferred choice for engineers across a variety of industries—from machine tools to aerospace—where precision and accuracy are essential. Here’s why torque motors stand out:
- Lower Cost of Ownership
Torque motors directly couple the payload to the rotor, eliminating the need for mechanical transmission components like gearboxes, timing belts, speed reducers, or worm gears. Unlike brushed motors, there’s no physical contact between rotor and stator, which means no mechanical wear. This leads to exceptional reliability, longer lifespan, and reduced maintenance costs. Fewer mechanical parts also translate to lower overall system costs. The inherent direct-drive technology ensures an efficient, gearless assembly. - Easy Integration
Thanks to the use of powerful magnets and a minimal air gap, torque motors often feature a large hollow shaft or bore, making it easy to integrate cables, cooling lines, or other equipment. Their ring-shaped design minimizes the space needed for mounting, giving designers great flexibility to position the motor alongside bearings, feedback devices, and payloads. Modern redesigns, such as the TMB+ series, have further improved torque, speed, size options, and heat reduction—all while maintaining compatibility with previous models. - Superior Dynamic Performance
Torque motors deliver exceptional dynamic response due to their high control loop bandwidth. Direct coupling of the load and position feedback eliminates issues like long-term drift, elasticity, and backlash that limit performance in traditional geared systems. This results in improved machine accuracy, reliability, and lifespan. Depending on the system’s duty cycle, motor selection is driven by peak torque, continuous torque, or both. - Wide Operating Range
Torque motors offer flexible operation across a broad range without mechanical adjustments. As long as the motor stays within its force and thermal limits, duty cycles can be adjusted easily through control settings. They seamlessly switch between high torque and high-speed modes, enabling complex and varied tasks without changing hardware. The torque motor uses a unique magnet configuration to excel at both low torque/high speed and low speed/high torque operations far beyond traditional designs. - Quieter Operation
Removing gearboxes significantly reduces vibration, noise, and torque ripple since direct-drive torque motors have fewer moving parts. This results in a quieter shop floor environment. Additionally, the absence of belts and chains eliminates common failure points, further improving reliability.
General Tips For Choosing A Torque Motor
To ensure optimal system performance, several key factors should be considered when selecting a torque motor:
▪︎ Motor Sizing: Proper sizing involves understanding the torque and speed requirements of your application. Consider factors such as friction, static forces, and load conditions. Also, account for the heat generated due to power dissipation, as this affects the motor’s temperature rise and structural integrity.
▪︎ Detent Torque Reduction: Minimizing detent torque—unwanted cogging or resistance in iron-core motors—is crucial. Innovative designs using open slots, ortho-cyclic windings, and fractional pole pitches help significantly reduce detent effects without skewing laminations or magnets.
▪︎ Motor Constant (Km): The motor constant, Km, links torque output to power losses. Motors with higher Km values can deliver greater torque more efficiently. Km is determined by the motor’s design and construction.
▪︎ Thermal Management: Effective heat dissipation is vital for maintaining motor performance and accuracy. Torque motors generate heat during operation, which must be managed to prevent thermal expansion and loss of precision. Cooling methods include natural air convection or liquid cooling systems.
Motor Torque Calculation
The torque produced by a motor (in Newton-meters, Nm) can be calculated using the following formula:
Where:
- T = Torque (Nm)
- P = Power output (Watts)
- ω = Angular speed (radians per second)
To calculate ω, motor speed in RPM must be converted to radians per second using the formula:
Example:
Given:
- Power output P=200 Watts
- Motor speed = 2000 RPM
Step 1: Convert RPM to rad/s
Step 2: Calculate torque

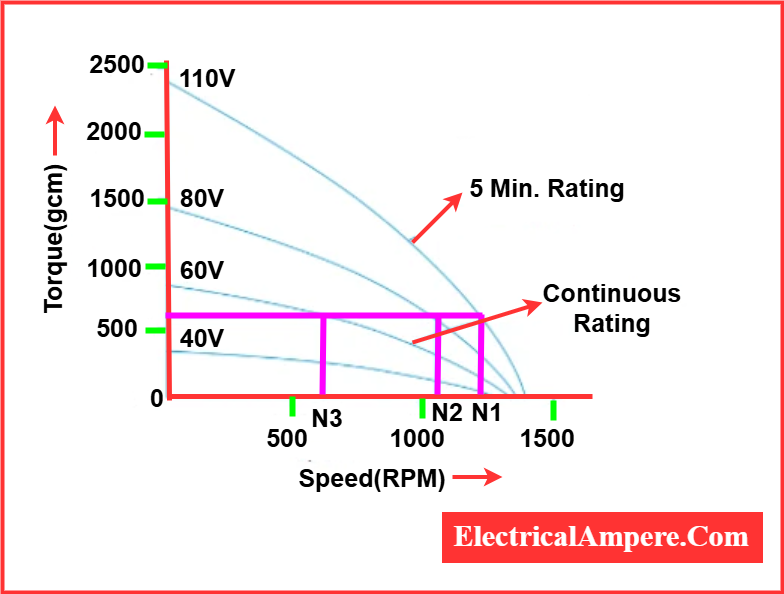

Torque-Speed Relationship
In electric motors, the rated output power remains constant. This means that torque and speed are inversely proportional to each other:
- When the motor speed increases, the torque output decreases proportionally.
- Conversely, when the torque increases, the speed decreases proportionally.
This inverse relationship ensures that the product of torque and speed (which determines power) remains constant under rated operating conditions.
Types of Torque Motor
- Standard Type Torque Motor: Designed for general applications, offering stable and consistent torque output.
- Built-In Voltage Regulator Type: Includes integrated voltage regulation for enhanced stability under load variations.
Based on Amount of Torque
- Low-Torque Motors: Used in light-load, precision applications.
- Medium-Torque Motors: Suitable for manufacturing and assembly lines.
- High-Torque Motors: Ideal for heavy-duty machinery like extruders and mills.
Based on Torque Characteristics
4. Constant Torque Motors: Maintain steady torque regardless of speed.
5. Variable Torque Motors: Torque varies with load and speed—commonly used in fans or pumps.
6. Torque Density Motors: Provide maximum torque in minimum space.
Based on Starting Torque
7. High Starting Torque Motors: Essential for applications requiring strong initial motion.
8. Low Starting Torque Motors: Used where a gentle start is preferable.
Based on Control Method
9. Direct Torque Control (DTC): Offers quick response and precise torque regulation. 10. Vector Control: Decouples speed and torque for high-performance motion control.
Advantages of Torque Motors
Strong Start-up and Acceleration-High-torque motors provide the powerful initial force needed to start systems from a standstill, making them essential for applications requiring strong start-up torque.
Ability to Handle Heavy Loads-These motors are well-suited for industrial machinery, electric vehicles, and other applications where sustained high torque is necessary to move or maintain heavy loads.
Enhanced Control at Low Speeds-High torque at low speeds allows for precise control, which is critical in applications such as robotic arms and CNC machines.
Improved Efficiency-Thanks to their design and operating principles, high-torque motors tend to be more efficient than standard motors, especially when operating under heavy loads.
Reduced Need for Gearing-High torque output often eliminates or reduces the need for additional gearboxes, simplifying system design and lowering costs.
Compact Design-Torque motors can deliver the required force in a smaller, more concise form factor compared to low-torque motors that rely on external mechanisms.
Versatility-These motors are highly adaptable and find applications across a wide range of industries—from conveyor systems to mixers.
Lower Noise, Vibration, and Torque Ripple-With fewer moving parts, torque motors reduce vibrations and torque ripple, improving accuracy and efficiency while generating less noise—creating a better working environment on the shop floor.
Applications of Torque Motors
▪︎ Robotics and Industrial Automation: Torque motors provide high torque and precise control at low speeds, making them essential in robotics for smooth, accurate movements and advanced automation processes.
▪︎ Machine Tools and CNC: Used in CNC machines, torque motors precisely control the rotation of axes, turntables, dividers, and cutting tools. They ensure accurate machining in lathes, milling machines, and other metalworking equipment.
▪︎ Material Handling and Transport: Torque motors power conveyor belts and cranes, enabling reliable and efficient movement of materials in industrial settings.
▪︎ Food Processing and Packaging Machinery: In the food and packaging industry, torque motors maintain precise control of conveyor belts and turntables to ensure consistent processing and packaging.
▪︎ Digital Printing: Torque motors are vital in digital printing systems to achieve high-speed dynamics and accurate positioning of conveyor belts, resulting in superior print quality.
▪︎ Winding : Winding is a critical operation in industries such as textiles, wire and cable manufacturing, metal sheet processing, and paper production. As material or products are wound onto a reel, the reel’s diameter gradually increases. However, it is essential to maintain a constant winding tension throughout the process.
To achieve this, the motor driving the reel must increase its output torque in proportion to the growing reel diameter, while simultaneously reducing its rotational speed to maintain a steady winding speed. If the tension is too high, it can cause the wire or material to thin excessively or even break. Conversely, too little tension may lead to uneven thickness or loose winding.
Torque motors, with their unique mechanical properties, are ideally suited for these winding and tension control applications. They provide precise control needed for winding materials such as textile fibers, cloth, webbing, tapes, films, plastics, or rubber sheets.
▪︎ Unwinding: When the wound material or product needs to be unwound and transferred to the next stage of processing, a torque motor can be employed to maintain consistent tension on the roll or reel, counteracting the direction of material movement. As the diameter of the reel or disc changes, the motor adjusts its rotational speed accordingly.
For instance, in printing or packaging machines handling full rolls of labels or stickers, a torque motor is mounted on the unwinding side with its rotation opposite to that of the winding motor. This torque motor provides a braking function to ensure the correct tension is maintained throughout the unwinding process.
▪︎ Stall Torque Applications: In certain applications, a motor must deliver output torque even when its rotational speed drops to zero after a period of operation—this condition is known as a “blocked rotor.” Although AC power is still supplied, the motor does not rotate. Examples include holding objects in place, actuating switches, or the start and end phases of cable winding, where maintaining tension and torque at zero speed is essential. Thanks to the high impedance of torque motors, they can safely operate in this stalled state without overheating, as the winding temperature remains within thermal limits.
▪︎ Robotics and CNC Machines (Additional): Provide smooth, controlled motion essential for precision tasks and dynamic operations.
Conclusion
In conclusion, torque motors offer a unique combination of high torque, precision, and quiet operation. From automation to CNC to film winding, these motors are the backbone of modern torque drives. Whether you’re wondering what is a torque motor or evaluating torque in motor performance, choosing the right torque motor can significantly enhance efficiency and performance across various industrial domains.
