In the world of electrical engineering and automation, NO and NC contact are foundational concepts that define how switches, relays, and contactors operate. Whether you’re dealing with industrial control systems, home automation, or circuit design. The behavior of NO and NC contacts in relay systems plays a key role in ensuring safe and reliable circuit operation.
Selecting the appropriate contact type ensures safe operation
Let’s break down the meaning, applications, and differences of NO and NC in relays, switches, and contactors.
What is NO and NC Contact?
In electrical systems, NO and NC stand for Normally Open and Normally Closed, respectively. These terms describe the default state of contacts in switches, relays, and contactors when no external force or power is applied.
- Normally Open (NO) contact means the circuit is open by default, so no current flows until the contact is activated or energized, closing the circuit.
- Normally Closed (NC) contact means the circuit is closed by default, allowing current to flow until the contact is activated or energized, opening the circuit.
In simpler terms:
- NO contacts are like a door that’s usually closed but opens when you press a button (activating the circuit).
- NC contacts are like a door that’s usually open but closes when you press a button (breaking the circuit).
These contacts are fundamental in controlling the flow of electricity in automation systems, safety devices, and various control circuits.
How NO and NC Contacts Work in Relays
A relay NO NC configuration is commonly found in industrial circuits. Relays act as electrically controlled switches. The NO contact completes a circuit when energized, while the NC contact breaks a circuit under the same condition.
Relay coils work as inductors, similar to the components discussed in our article on Inductor – Definition, Function, Types, and Applications, which explains how they generate magnetic fields in switching circuits.
Examples of NO and NC Contacts in Relay-
- NO contacts are used to activate fans, alarms, and lights only when a specific condition is met.
- NC contacts are useful in fail-safe designs—if power is lost, NC contacts automatically engage or disengage to ensure safety.
- These configurations are common in logic control for alternating device states automatically.
Knowing how NO and NC contacts behave in relay systems helps ensure safe and functional circuit operation. These contacts are widely used to determine whether a circuit should be completed or interrupted based on the energizing of the relay coil. NO and NC contact in relay setups allow engineers to automate switching for motors, lights, alarms, and interlocks with precision and reliability.

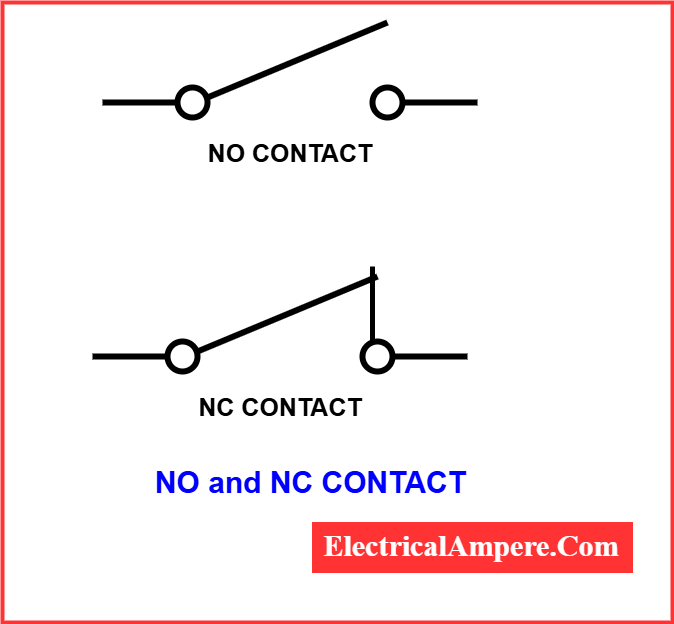

Relay NO NC Symbol
In circuit diagrams, the NO NC symbol is used to indicate the default state:
- NO contact is drawn open,
- NC contact is drawn closed.
These visual symbols help engineers design and troubleshoot circuits more effectively.
NO and NC Switches Explained
A NO and NC switch integrates both contact types into a single unit, allowing flexible control options in various applications. For instance, a push-button switch may include:
- NO contact to start a motor,
- NC contact to stop it or trigger an emergency shutdown.
Knowing how to wire NO NC switch correctly is crucial to ensure the device performs the intended control actions. Wrong wiring can lead to failure of critical control functions, especially in industrial or safety-sensitive environments.
Simple Wiring Tip:
- NO (Normally Open): Connect to devices that should activate only when the button is pressed, such as a motor starter.
- NC (Normally Closed): Connect to devices that should remain active until the button is pressed, like a safety interlock or stop circuit.

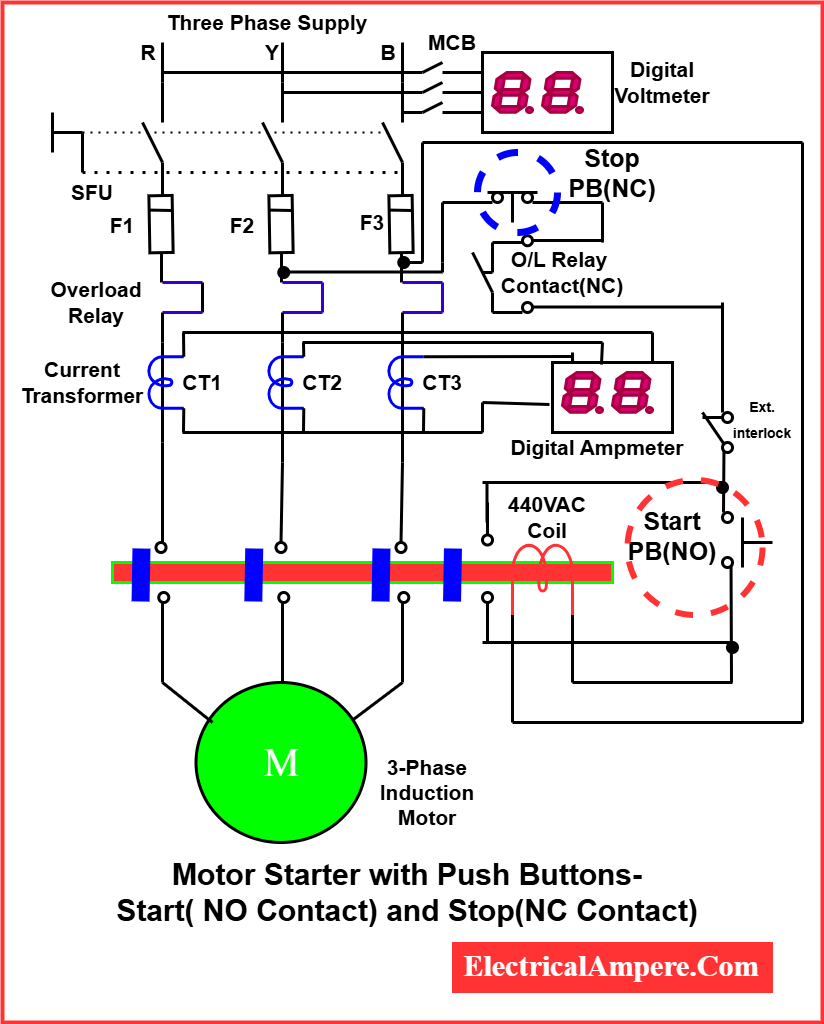

Wiring Diagram Example:
- When the switch is not pressed:
- NO is open → motor starter is OFF
- NC is closed → emergency light is ON
- When the switch is pressed:
- NO closes → motor starter turns ON
- NC opens → emergency light turns OFF
These dual-contact switches are especially useful in motor control stations, elevators, and emergency control panels, allowing safe and intuitive system behavior.

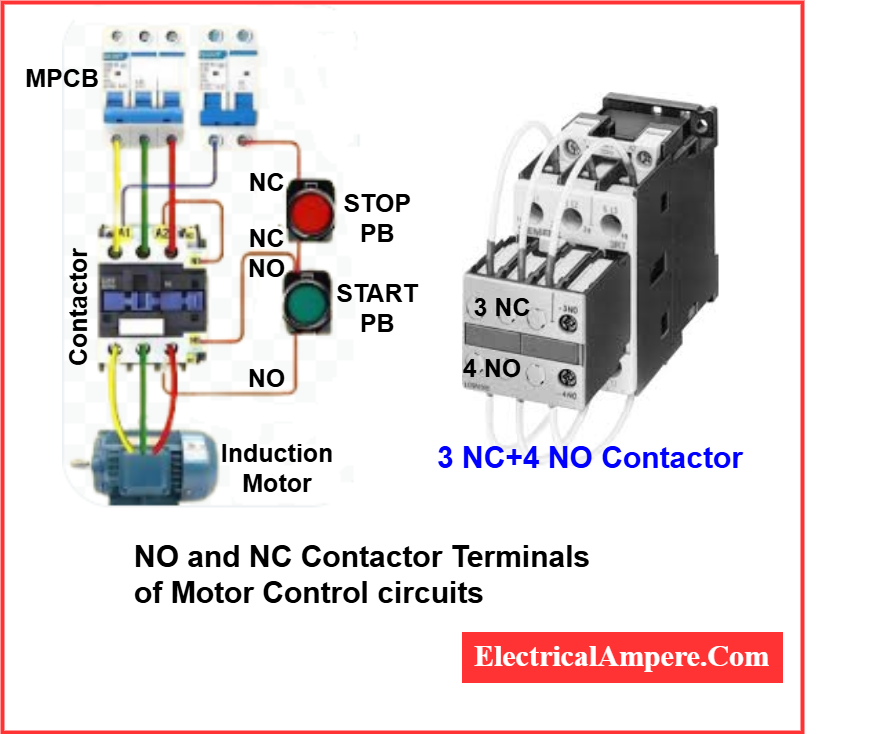

NO and NC Contact in Contactors
A NO NC contactor is an electrically controlled switch used for switching a power circuit.
- NO contacts energize devices (e.g., motors) when the contactor coil is powered.
- NC contacts disconnect the device under the same condition, often used for braking or interlocking functions.
Applications of NO and NC Contact
Common uses include:
- Industrial Automation: Start/stop circuits, interlocks, alarms
- Home Appliances: Thermostats, microwave doors
- Contactor Circuits: NO NC contactor configurations control motors

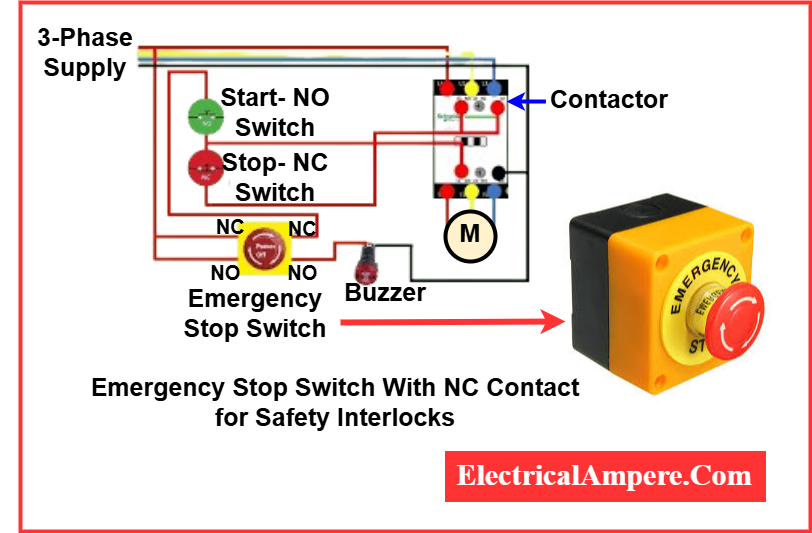

- Safety Systems: Emergency stop buttons with NC contact
- Control Panels: Logic circuits using NO NC contact relay
The NO NC contact application in automation is widespread, including motor control, safety interlocks, and alarm systems, where reliable switching based on specific input conditions is vital.

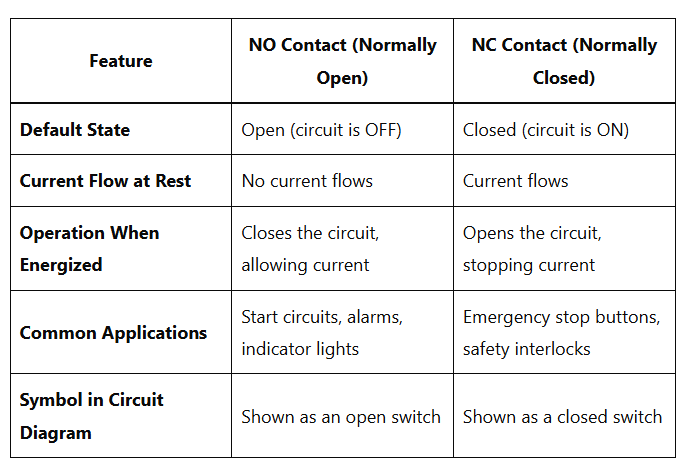

Key Differences Between NO and NC Contacts (with Summary Table)
Differentiating between NO and NC contacts is essential when selecting suitable components in control systems. These contacts differ mainly in their default states and how they control the flow of current, especially in relays, switches, and contactors.
| Feature | NO Contact (Normally Open) | NC Contact (Normally Closed) |
|---|---|---|
| Default State | Open (circuit is OFF) | Closed (circuit is ON) |
| Current Flow at Rest | No current flows | Current flows |
| Operation When Energized | Closes the circuit, allowing current | Opens the circuit, stopping current |
| Common Applications | Start circuits, alarms, indicator lights | Emergency stop buttons, safety interlocks |
| Symbol in Circuit Diagram | Shown as an open switch | Shown as a closed switch |
How it works in relays:
- NO contacts remain open when the relay coil is de-energized and close to complete the circuit when energized.
- NC contacts stay closed when the relay is not energized and open to break the circuit when energized.
This fundamental difference means NO contacts are typically used to activate devices or systems only when a control signal is present, while NC contacts are employed for safety and fail-safe applications, ensuring circuits break under certain conditions to prevent accidents.
In automation and control systems, knowing the difference between NO and NC contact in relay and switches allows for designing reliable and safe control logic.
Safety Considerations: Why Choosing NO vs NC Matters
Selecting between NO and NC contacts isn’t just a functional decision—it has direct safety implications, especially in industrial automation and critical control systems.
1. Fail-Safe Design Principles
- NC (Normally Closed) contacts are often used in emergency stop buttons and safety interlocks. They ensure that a circuit stays active until deliberately interrupted, providing a fail-safe condition if power or signal is lost.
- NO (Normally Open) contacts, on the other hand, only activate when needed, making them ideal for initiating actions like starting a machine, sounding an alarm, or turning on a warning light.
2. Power Loss Behavior
- In the event of power failure:
- NC contacts will automatically close, stopping a motor or machine—vital in stopping hazardous operations.
- NO contacts stay open, preventing devices from turning on unintentionally.
3. Risk Reduction
Proper use of NO and NC contacts can prevent:
- Accidental machine startups,
- Electrical hazards,
- Equipment damage,
- Human injury in unsafe conditions.
4. Standards Compliance
Compliance with safety standards is critical in industrial control systems. IEC 60204-1, which covers electrical equipment of machines, mandates using NC contacts in emergency stop systems to ensure a safe shutdown. Similarly, OSHA (Occupational Safety and Health Administration) regulations in the U.S. require that emergency stop devices disconnect power reliably to prevent injury.
By following these standards, engineers ensure systems meet legal requirements and international best practices, significantly reducing risks in hazardous operations.
Pro Tip: Always consult circuit diagrams and safety regulations when choosing between NO and NC for safety-critical systems.
Conclusion
Mastering the operation of NO and NC contacts enables engineers to design smarter, safer control systems.. Whether you’re working with relays, switches, or contactors, knowing when the contacts are open or closed ensures proper circuit functionality and safety.
In particular, NO and NC contact in relay applications are widely used to control when circuits are completed or broken based on energized conditions. This makes them crucial in automation systems where logic-based switching and fail-safe operations are required. Choosing the right contact type ensures devices respond appropriately to control signals, improving both safety and performance.
FAQs
Yes, many industrial switches and relays have both NO and NC contacts for flexible control.
NC contacts are used in safety systems where power should be cut off in the event of a failure or emergency.
No, they serve different purposes and must be used according to the logic of your control circuit.
The NO contact is open at rest and closes when energized, while the NC contact is closed at rest and opens when energized. This difference determines their specific uses in relay control circuits.
Wiring a NO NC switch involves connecting the load to the NO terminal for circuits that should activate when the switch is pressed, and to the NC terminal for circuits that should deactivate or stop when pressed.
NO NC contacts are widely used in automation for controlling motors, alarms, interlocks, and safety shutdowns, allowing flexible and reliable system operation.
