Difference Between Active and Passive Components

In electronics, all circuit elements are broadly classified into active components and passive components. The main difference between them is that active components require an external power source and can amplify or control signals, while passive components do not need an external power source and can only store, resist, or dissipate energy.

Understanding this difference is important because both types of components are used together to design electronic circuits, from simple power supplies to complex communication systems.

What Are Active Components?

Active components are electronic elements that can control the flow of electricity. They require an external power source to operate and are capable of amplifying signals or generating energy.

Key Features of Active Components

  1. Require External Power Supply
    Active components cannot work on their own; they need an additional power source such as DC bias or an external voltage supply. For example, a transistor requires a biasing voltage to function as an amplifier or a switch.
  2. Can Amplify Weak Signals
    One of the most important features is amplification. Active components can take a small input signal and produce a larger output signal. This is why devices like transistors and operational amplifiers are widely used in audio systems, radios, and communication circuits.
  3. Control the Flow of Current in Circuits
    Unlike passive components, active elements can actively regulate the current passing through a circuit. For instance, a transistor can control a large amount of current with a very small base current, making it essential in switching applications.
  4. Provide Gain or Energy
    Active components not only process signals but also deliver gain, meaning they can increase the power of a signal. Some devices, such as oscillators, can even generate energy in the form of periodic signals without requiring an input signal.

Common Examples of Active Components

Active components are devices that control, amplify, or supply energy. They are active part of electronic systems. Let’s go through the most common ones in a simple way.

1. Voltage Source

A voltage source provides a constant voltage across its terminals. It sets up the potential difference that makes current flow in a circuit.

  • An ideal voltage source has zero internal resistance and keeps its voltage steady no matter how much current the load demands.
  • Examples: batteries, generators, and regulated power supplies.

2. Current Source

A current source delivers a fixed amount of current to a circuit, regardless of changes in the load.

  • An ideal current source has infinite internal resistance and always maintains the same current.
  • Practical uses: biasing transistors, powering LEDs, or building current mirrors.

3. Diodes

A diode is a two-terminal device that allows current to flow only in one direction.

  • Forward bias: current flows.
  • Reverse bias: it blocks current.

Types and uses:

  • LED (Light Emitting Diode): gives off light, used in displays and lamps.
  • Zener Diode: maintains a fixed voltage, great for voltage regulation.
  • Laser Diode: creates a powerful laser beam, used in communication and medical tools.

In short, diodes act as one-way gates and are also used in power supplies, rectifiers, and lighting.

4. Transistors (BJT, FET, MOSFET)

Transistors are the most important active components because they can amplify signals or act as electronic switches.

  • BJT (Bipolar Junction Transistor):
    Controls a large current using a small input current at the base. Used in amplifiers and basic logic circuits.
  • FET (Field Effect Transistor):
    Controlled by voltage instead of current, with very high input impedance. Good for low-noise amplification.
  • MOSFET (Metal Oxide Semiconductor FET):
    A special FET with an insulated gate, very fast and efficient. Common in power supplies, digital circuits, and motor control.

They are the building blocks of modern electronics—without them, computers and smartphones wouldn’t exist.

5. Integrated Circuits (ICs)

An IC is basically a tiny factory of active and passive components (transistors, diodes, resistors, capacitors) packed on a single chip.

  • Analog ICs: like op-amps and voltage regulators.
  • Digital ICs: like processors and memory chips.
  • Mixed ICs: combine both analog and digital.

They’re small, reliable, and power-efficient—making them the brains behind almost every electronic device.

6. Thyristors

A thyristor is a four-layer device that acts like a switch. Once triggered by a small signal at the gate, it keeps conducting until the current stops.

  • Examples: SCR, TRIAC, DIAC.
  • Commonly used in motor drives, power rectifiers, and light dimmers.

They’re great for handling high power applications.

7. Vacuum Tubes

Before transistors, we had vacuum tubes. They use electrodes sealed in a glass tube to control current.

  • Types: diode tubes, triodes, tetrodes, pentodes.
  • Still used in RF transmitters, microwave ovens, and high-quality audio amplifiers.

They’re bulky but powerful, and still loved in specialized electronics and music systems.

Quick Summary: Examples of Active Components

Component Key Function Examples / Uses
Voltage Source Provides constant voltage Batteries, generators, power supplies
Current Source Supplies fixed current Biasing transistors, LEDs, current mirrors
Diodes Allow current in one direction LED, Zener, Laser diodes
Transistors (BJT, FET, MOSFET) Amplify or switch signals Amplifiers, logic circuits, digital circuits
Integrated Circuits (ICs) Miniature circuits on a chip Op-amps, processors, memory chips
Thyristors Switch high power circuits SCR, TRIAC, DIAC, dimmers, motor drives
Vacuum Tubes Control current using electrodes RF transmitters, audio amps, microwave ovens

What Are Passive Components?

Passive components are electronic elements that cannot generate or amplify power. They simply consume, resist, or store energy in the form of voltage and current.

Key Features of Passive Components

  1. Do Not Need an External Power Source
    Passive components can function without any external supply of power. They rely entirely on the energy provided by the active components or the input signal in the circuit. For example, a resistor limits current simply due to its inherent resistance, without requiring any additional supply.
  2. Cannot Amplify Signals
    Unlike active devices, passive components cannot strengthen or increase the magnitude of an input signal. Instead, they may reduce, filter, or shape the signal. For instance, a capacitor in a filter circuit allows certain frequencies to pass while blocking others, but it does not make the signal stronger.
  3. Only Store or Dissipate Energy
    Passive components either store energy temporarily or dissipate it as heat. Capacitors store energy in the form of an electric field, inductors store energy in the form of a magnetic field, and resistors dissipate electrical energy as heat.
  4. Provide No Gain
    Passive elements cannot provide power gain. The output from a passive component is always less than or equal to the input. For example, in a resistor, the input electrical energy is partly converted into heat, meaning energy is lost rather than amplified.

Common Examples of Passive Components:

Passive components are devices that cannot generate energy on their own. Instead, they store, resist, or transfer energy in a circuit. They are just as important as active components because they control how current and voltage behave. Let’s look at the most common ones.

1. Resistors

A resistor is the simplest passive component—it resists the flow of current and drops voltage in a circuit.

  • Measured in ohms (Ω).
  • Used for current limiting, voltage division, and biasing active components.
  • Types: Fixed resistors, variable resistors (potentiometers), thermistors, and light-dependent resistors (LDRs).

2. Capacitors

A capacitor stores electrical energy in the form of an electric field between its two plates.

  • Measured in farads (F).
  • Can store and release charge quickly.
  • Types: Electrolytic, ceramic, mica, film, and supercapacitors.
  • Used for filtering, coupling, energy storage, timing circuits, and power factor correction.

3. Inductors

An inductor stores energy in the form of a magnetic field created when current flows through a coil of wire.

  • Measured in henrys (H).
  • Opposes sudden changes in current.
  • Types: Air-core, iron-core, and toroidal inductors.
  • Commonly used in filters, tuning circuits, chokes, and power supplies.

4. Transformers

A transformer is a passive electromagnetic device that transfers energy between two circuits through mutual induction.

  • Made of two or more coils (primary and secondary) wound around a magnetic core.
  • Can step up or step down voltage, isolate circuits, and match impedance.
  • Types: Power transformers, isolation transformers, audio transformers, and instrument transformers.

Quick Summary: Examples of Passive Components

Component Key Function Examples / Uses
Resistors Resist current flow and drop voltage Fixed, variable, thermistors, LDRs; current limiting, voltage division, biasing
Capacitors Store and release electrical energy Electrolytic, ceramic, mica, film, supercapacitors; filtering, coupling, timing, energy storage
Inductors Store energy in a magnetic field Air-core, iron-core, toroidal; filters, chokes, tuning circuits, power supplies
Transformers Transfer energy between circuits via induction Power, isolation, audio, instrument transformers; step-up/down voltage, isolation, impedance matching

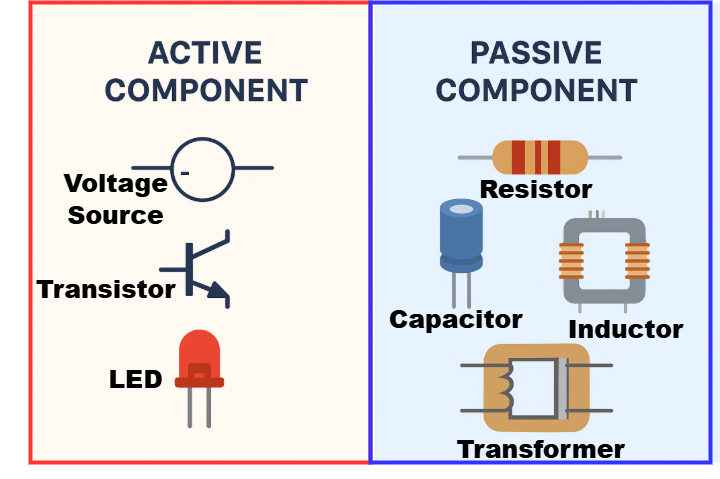

example of active and passive components- active componets voltage source,transistor, diode, LED- passive componets resisstor, capacitor,inductor, transformer

Difference Between Active and Passive Components (Tabular Form)

Basis of Difference Active Component Passive Component
Definition Can supply energy or amplify power in a circuit. Only consumes, stores, or dissipates energy without generating it.
Examples Batteries, voltage/current sources, transistors, SCRs, solar cells. Resistors, capacitors, inductors, transformers.
Role in Circuit Acts as a source of energy or power. Acts mainly as a load, controlling current or voltage indirectly.
Power Gain Can increase power; capable of amplifying signals. Cannot provide power gain; only reduces or stores energy.
Function Converts energy from chemical, thermal, or mechanical sources into electrical energy. Converts electrical energy into heat, light, motion, or stores it in magnetic/electric fields.
Control of Current Actively directs and controls current flow in the circuit. Does not control current; depends on applied voltage and component properties.
VI Characteristics (Slope) Slope can be negative at certain operating points. Slope is always positive.
Graph Quadrant VI curve may appear in 2nd and 4th quadrants. VI curve lies in 1st and 3rd quadrants.
Power Delivery/Absorption Can both deliver and absorb power (e.g., battery charging/discharging). Only absorbs power; cannot supply energy back to the circuit.
Need for External Source Some need external energy to operate, e.g., transistors and SCRs. Do not require external power; operate using inherent properties like resistance, capacitance, or inductance.
Amplification Can amplify signals; power gain > 1. Cannot amplify signals; power gain < 1.
🔎 Quick Summary – Active vs Passive Components
  • Power: Active need extra power; Passive do not.
  • Amplification: Active can amplify signals; Passive cannot.
  • Energy: Active provide gain; Passive only store or dissipate.
  • Examples: Active = Transistors, ICs. Passive = Resistors, Capacitors.
  • Linearity: Active often non-linear; Passive mostly linear.

Applications of Active and Passive Components

Applications of Active Components

Active components play a central role in modern electronics because they can control, amplify, and process electrical signals. Some key applications include:

  1. Signal Amplification
    Active devices like transistors and operational amplifiers are used to boost weak signals. For example, in audio amplifiers, they increase the sound volume from microphones, and in radio receivers, they strengthen faint signals captured by the antenna.
  2. Switching Circuits
    Transistors and thyristors are used as electronic switches in digital logic and power electronics. They allow devices such as computers, smartphones, and motor controllers to operate efficiently by turning circuits on and off at very high speeds.
  3. Oscillators and Signal Generators
    Active components are essential in creating oscillators, which generate continuous waveforms like sine, square, or triangle waves. These are used in clocks, communication systems, and test instruments.
  4. Microprocessors and Integrated Circuits (ICs)
    Modern ICs and microprocessors, the brain of all electronic devices, are made entirely from active components like transistors. Without them, computers, smartphones, and digital electronics would not function.

Applications of Passive Components

Passive components are equally important because they handle energy storage, filtering, and conditioning in circuits. Their common applications include:

  1. Filter Circuits
    Capacitors and inductors are widely used in low-pass, high-pass, band-pass, and band-stop filters. These filters separate signals of different frequencies and are crucial in radios, televisions, and communication systems.
  2. Energy Storage
    Capacitors store electrical energy in the form of an electric field, and inductors store it as a magnetic field. This makes them vital in power supplies, battery chargers, and energy backup systems.
  3. Current Limiting and Voltage Regulation
    Resistors control the flow of current and protect sensitive devices from overcurrent. They also form voltage divider circuits to supply precise voltage levels required by other components.
  4. Transformers for Voltage Conversion
    Transformers are passive components that step up or step down AC voltage. They are used in power transmission systems, adapters, and isolation circuits, making them essential for safe and efficient energy distribution.

Conclusion

The difference between active and passive components lies in their ability to amplify and control signals. Active components need an external power source and can amplify signals, while passive components do not require external power and only store or consume energy. Both are equally important in electronics, and together they form the backbone of every electrical circuit.
