Introduction to Neon Lamps
A neon lamp, also known as a neon glow lamp, is a miniature gas-discharge lamp widely used in indicator circuits and early electronics. Neon lamps are commonly powered by alternating current (AC) and are known for their classic orange glow.
These lamps consist of a small glass bulb containing a low-pressure gas mixture—primarily neon with a bit of argon—and two electrodes. When a sufficient voltage is applied, the gas becomes ionized and produces a distinct glow near the cathode. Neon lamp indicators are especially popular as they require minimal energy and have long operational lives.
Historical Background of Neon Lamp
The journey of neon lighting began in 1898, when William Ramsay and Morris Travers discovered neon. However, it wasn’t until Georges Claude industrialized neon production in the early 1900s that practical neon lamps emerged. In 1917, Daniel Moore developed the miniature neon lamp at General Electric (GE), which was distinct from large neon sign bulbs.
Glow lamps gained popularity for use in instrument panels and appliances until the advent of LEDs in the 1970s.

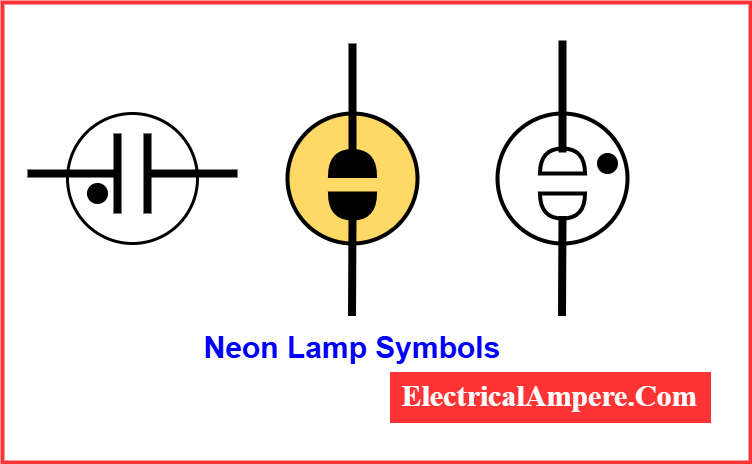

Schematic Symbol of a Neon Lamp
The schematic symbol for a neon lamp consists of a circle enclosing two short parallel lines, denoting the anode and cathode. It represents a gas-discharge component, typically connected with a current-limiting resistor.
Construction of Neon Lamp
The construction of a neon lamp is simple yet effective, allowing it to function reliably in low-power indicator applications. A typical neon lamp consists of a soft glass envelope, usually around 5 mm in diameter, filled with a low-pressure gas mixture — commonly 99.5% neon and 0.5% argon — maintained at approximately 8 torr.
Inside the glass envelope are two closely spaced electrodes: the anode and the cathode. These electrodes are typically made of thick spiral wire or flat plates but do not physically touch each other. The glow discharge occurs in the gas gap between them when a sufficient voltage is applied.
To ensure safe operation, a series resistance of around 2000 ohms is often mounted inside the lamp cap. This resistor limits the current through the lamp once ionization begins, protecting the lamp from overcurrent damage.

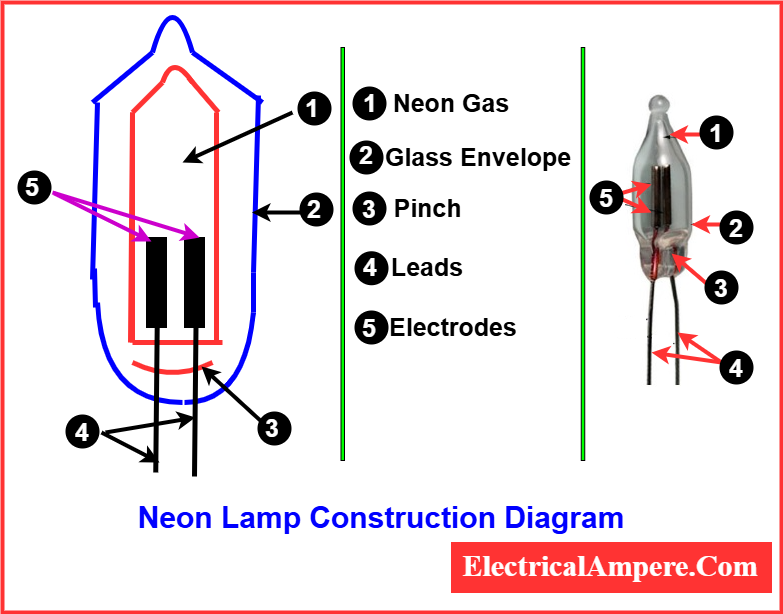

Neon Lamp Construction Diagram
The neon lamp construction diagram below illustrates the internal components of a typical neon glow lamp. It shows the two electrodes (anode and cathode) placed within a sealed glass envelope filled with low-pressure neon gas. The spacing between the electrodes is critical for initiating the glow discharge.
Working of Neon Lamp
The working of a neon lamp is based on the principle of gas discharge and ionization of neon gas under high voltage conditions. When a high electric power supply is applied across the two electrodes, the cathode begins to emit electrons. These electrons accelerate through the electric field and collide with neon atoms present inside the glass envelope.
During these collisions, energy is transferred from the electrons to the neon atoms, exciting them. As these excited neon atoms and ions return to their ground state, they emit a soft orange-red glow, which is the characteristic illumination of a neon glow lamp.
Key Points on Neon Lamp Working:
- The glow discharge begins at a striking voltage and is sustained at a lower maintaining voltage. This behavior enables stable operation at low current levels.
- In a neon lamp, the cathode requires initial heating for electron emission. The voltage required for gas discharge is typically 1.5 to 2 times the normal operating voltage, depending on electrode spacing.
- A strong electric field near the cathode accelerates ions significantly, which can cause disintegration or sputtering of the cathode material over time.
- If the lamp current is too low (under 1 mA), the discharge may flicker. Conversely, a higher current (up to 2.5 mA for high brightness neon lamps) yields a bright and stable glow but can reduce lamp life and cause blackening of the envelope.
- When powered by AC supply, the polarity of the electrodes alternates. As a result, both electrodes emit light in succession, producing a continuous glow.
- These characteristics make neon lamps ideal for high voltage and low current applications, especially in indicating circuits and surge protection systems.
Electrical Characteristics of Neon Lamps
- Breakdown Voltage: ~90V (can be reduced by ambient light or radioactive elements like Krypton-85)
- Glow Region Pressure: Optimal operation between 1 and 20 torrs
- Voltage Behavior:
- Glow discharge initiates at a striking voltage
- Sustains at a lower maintaining voltage
- Dark Effect:
- Starting voltage increases in complete darkness
- Can be mitigated using radioactive additives (e.g., Krypton-85)
- Negative Resistance Region: Allows use in oscillators and switching circuits
- Current Limiting Requirement: Once ignited, neon lamps can allow large current flow. External resistors or high-leakage transformers are essential to prevent overcurrent damage.
- Flicker Flame Phenomenon: At very low currents, glow instability may cause flickering. While sometimes used for decorative effect, this may also indicate aging or insufficient voltage.
Neon Lamp Efficiency Compared to Other Light Sources
When evaluating different light sources, luminous efficiency—measured in lumens per watt (lm/W)—is a key performance metric. Neon lamps offer moderate efficiency compared to modern lighting technologies.
Here’s how they compare with other common lamps:
Lamp Efficiency Comparison Table
| Lamp Type | Typical Efficiency (Lumens per Watt) |
|---|---|
| Neon Lamp (Green) | Up to 65 lm/W |
| White Neon Lamp | Around 50 lm/W |
| Incandescent Bulb | Approximately 13.5 lm/W |
| LED | 80–200 lm/W (highest efficiency) |
While neon lamps outperform incandescent bulbs in energy efficiency, they are still less efficient than LEDs, which dominate today’s lighting market due to their high lumen output and energy savings.
While neon lamps outperform incandescent bulbs in energy efficiency, they are still less efficient than modern lighting technologies like CFL lamps and LEDs, which offer higher luminous efficacy and better energy savings.
Lifespan of Neon Lamps
- Standard neon lamps typically last between 5,000 and 15,000 hours, depending on the operating current and duty cycle.
- Color variants (e.g., green, white with phosphor coating) may last up to 25,000 hours when operated at optimal currents below 1 mA.
This long operational life, combined with low power consumption and reliability, makes neon lamps suitable for indicator circuits, vintage displays, and decorative signage.
Environmental Factors Affecting Neon Lamp Performance
The performance and reliability of a neon lamp can be influenced by several environmental conditions:
- Ambient Light: In complete darkness, the striking voltage required for a neon lamp increases. Exposure to light or the use of radioactive additives (e.g., Krypton-85) helps reduce this effect.
- Temperature: Extreme temperatures may alter gas pressure and ionization behavior, impacting glow intensity and lamp lifespan.
- Electrostatic Fields: Nearby electric fields can interfere with discharge stability, causing flickering or inconsistent operation.
- Lamp Aging: Over time, electrode wear or gas contamination can degrade performance and increase ignition voltage.
To maintain consistent functionality, some neon lamps are treated during manufacturing or paired with pilot lamps or radioactive dopants to stabilize striking characteristics.
Applications of Neon Lamps
1. Visual Indicators
Commonly used in power strips, extension cords, and appliances due to their mains compatibility and low power consumption. These neon indicator applications are especially common in household and industrial settings.
2. Voltage Surge Protection
Although not as robust as gas discharge tubes (GDTs), neon lamps are used in low-voltage surge protection and basic RF protection.
3. Voltage Testing
With AC, both electrodes glow. With DC, only the cathode glows—making it a simple tool to determine polarity or waveform type.
4. Voltage Regulation
Used as a basic voltage regulator or overvoltage protector, leveraging the lamp’s stable voltage drop characteristics.
5. Switching and Oscillators
Neon lamps exhibit negative resistance and hysteresis, enabling use in:
- Relaxation oscillators (Pearson-Anson effect)
- Timing circuits
- Logic circuits (e.g., flip-flops, counters)
6. Radiation and Microwave Detection
Neon lamps can function as microwave and terahertz detectors, thanks to their ability to operate in both glow and starvation modes. Some configurations use a third electrode as an antenna.
7. Alphanumerical Displays
Nixie tubes use neon lamps with shaped electrodes to display digits. These preceded modern LED and LCD displays.
8. Other Uses
- Tuning indicators in early radios
- Mechanical scan TVs in early television development
- Novelty lighting with artistic electrode shapes and phosphor coatings
- Decorative and artistic applications such as neon sign bulb installations, neon bulb indicator systems, and neon sign bulbs for signage and advertising
- Used in various compact circuits that use neon for status indication
Color Variants of Neon Lamps
Standard neon lamps glow orange-red. However, color variations can be achieved by:
- Using argon, krypton, or xenon gas
- Adding phosphor coatings for white, green, blue, and multicolor glows
For example, a mixture of 95% neon, 2.5% krypton, 2.5% argon can produce a green glow, though green lamps are typically phosphor-based.
Advantages of Neon Lamps
Neon lamps offer several noteworthy benefits, especially for low-power and indicator applications:
- Compact Size: Available in miniature sizes, making them ideal for space-constrained circuits.
- Instant Illumination: Neon lamps light up immediately upon reaching the striking voltage.
- Cost-Effective: They are inexpensive to manufacture and maintain.
- Low Power Consumption: Require minimal electrical power, suitable for continuous operation.
- Long Operational Life: Typically last up to 5,000 hours under normal conditions.
Disadvantages of Neon Lamps
Despite their advantages, neon lamps come with some limitations:
- Low Luminous Efficiency: They produce less light output per watt compared to LEDs or fluorescent lamps.
- Not Suitable for General Lighting: Their brightness and color output are not ideal for home or task lighting.
- Limited Color Options: Emit a narrow color spectrum—mostly orange-red—without additional treatment or coatings.
Conclusion
Neon lamps continue to fulfill a variety of roles despite the rise of modern technologies like LEDs. Their simplicity, durability, cost-effectiveness, and distinct visual appearance help them maintain relevance in both electronic circuits and aesthetic designs.
Whether employed for signal indication, voltage regulation, detection, or decorative lighting, these compact gas-discharge devices hold a special place in the evolution of electrical components. From classic indicator bulbs to vintage signage elements, neon-based lighting continues to inspire creative applications in circuit design and artistic displays.
Frequently Asked Questions — Neon Lamp
Neon indicator lamps typically last between 5,000 to 25,000 hours, depending on current levels and usage. Underdriven lamps may approach upper lifespan limits
Yes. Neon lamps operate on AC or DC. On DC, only the cathode glows; on AC, both electrodes glow alternately .
Flickering—or the “flicker flame” effect—occurs at low currents, causing unstable glow discharge. It’s often decorative, but can also signal low power or aging .
Neon lamps are safe when used properly (with current-limiting resistors) and offer energy efficiency up to 65 lm/W. However, they’re less bright compared to LEDs .
Yes. Due to their negative resistance characteristics, neon lamps can act as simple voltage regulators or over-voltage protectors in certain low-current circuits
